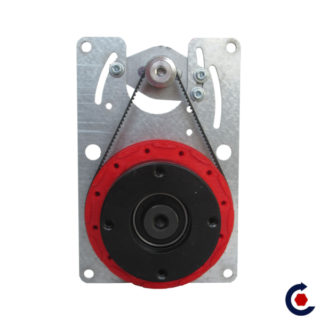

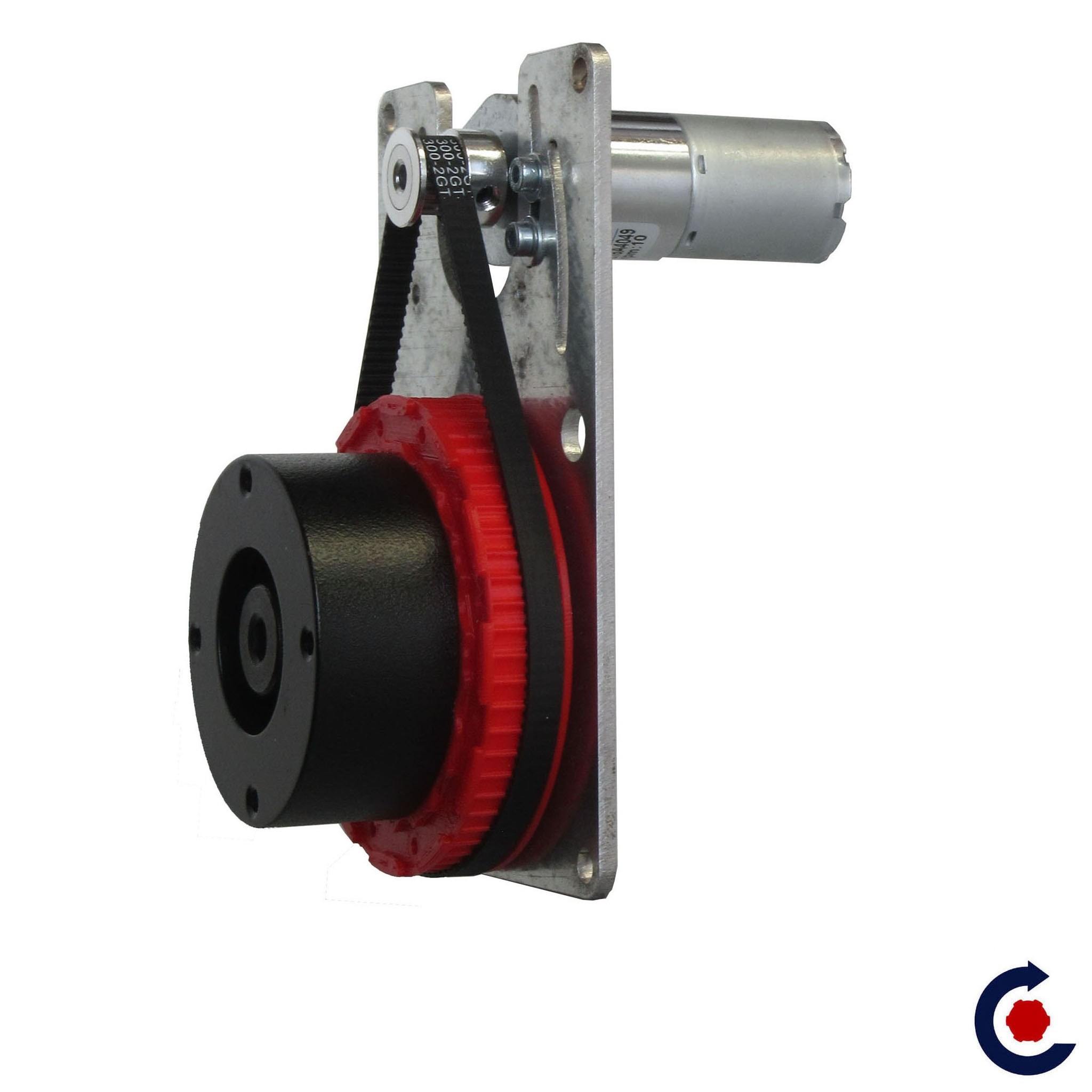

LUDIC motorised axis
Variable speed 8 rpm
Ref. B6VR50
246.00 € HT
295.20 € TTC
Motorised axis allowing you to create a prototype and define the desired speed by testing the renderings.
-
LUDIC range
- Up to 10 rpm at 12 Vdc
- Clockwise or anti-clockwise depending on polarity
- The 12 Vdc power supply is not supplied see here
- Zinc plated steel plate : LxWxH 130 x 85 x 3 mm
- 4 fixing holes Ø 5 mm
- Hub Ø 58 mm 4 tapped holes M4
- Delivered without cables12 Vdc
- Indoor use
Max load centered for a speed of 2 rpm
Load > as speed increases
Wall position load against the hub: 16 kg max
Wall position load 10 cm from the hub: 10 kg Max
drive torque (unbalance) :
1 kg on 23 cm max (e.g. 5.7 kg at 4 cm)
Characteristics
Documentations
| Charge capacité | : | 10 kg |
| Speed rotation | : | Variable speed tr/min |
| Sens of rotation | : | Two-way |
| Power supply | : | 12 Vdc |
| Ø rotating part | : | 58 mm |
| Lenght | : | 130 mm |
| Width | : | 85 mm |
| Height | : | 104 mm |
