LUDIC B7 motorised axle
double way 0.85rpm
Ref. B7V6MDS

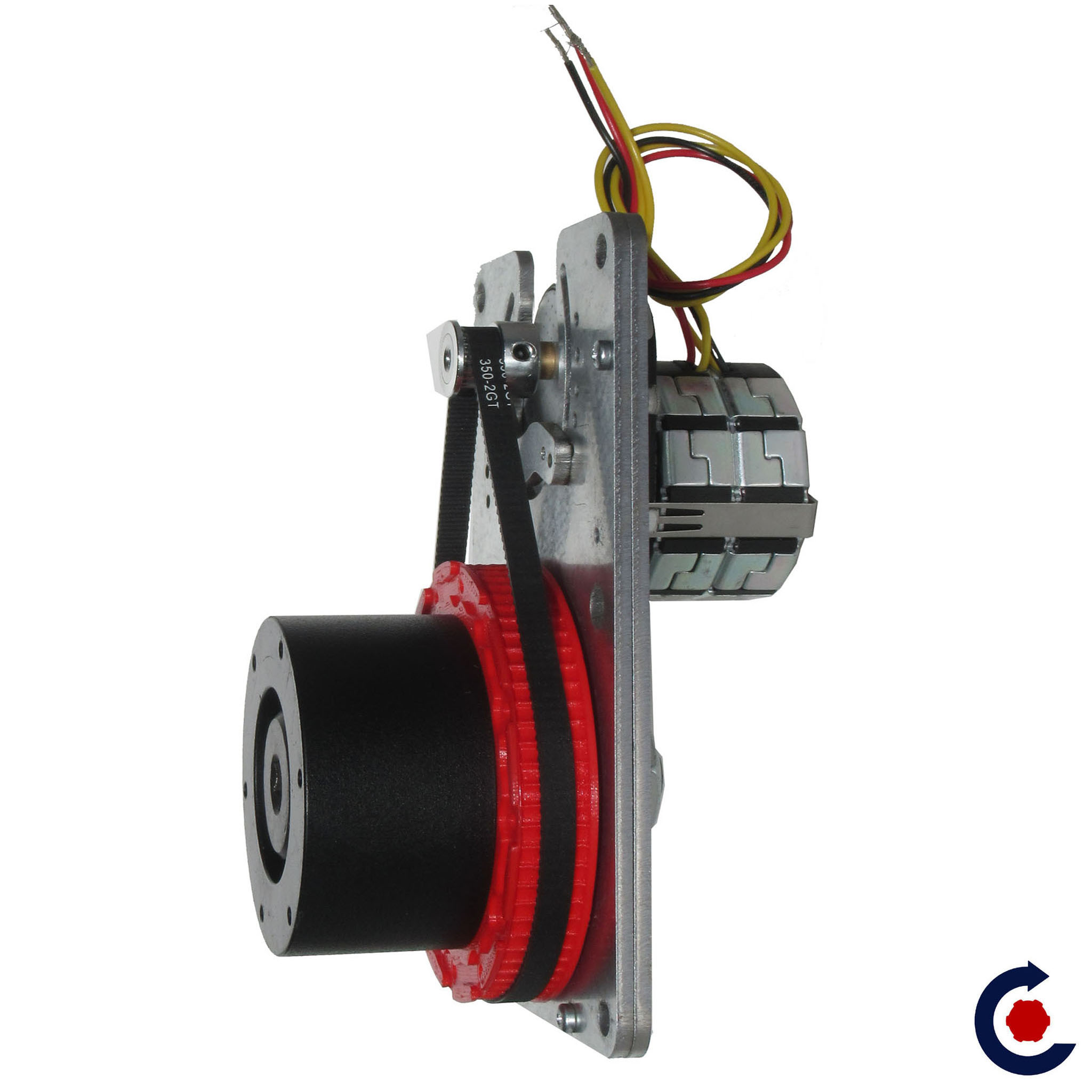

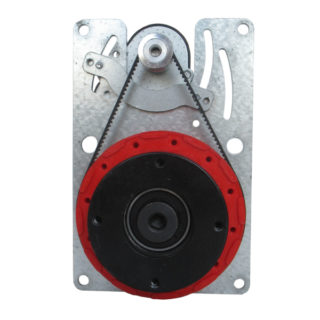

Motorized axis wall animation two-way motor ref. B7V6MDS
Motorized axis wall animation two-way motor ref. B7V6MDS
Motorized wall axis double direction motor ref. B7V6MDS
352.00 € HT
422.40 € TTC
Quantity
under 15 day(s)
Add to cart

Motorised axis on a plate to be inserted in your structure. Allows you to motorise your decorations and displays.

  • LUDIC range

  • Speed up to 0.85 rpm
  • Direction of rotation according to  your wiring
  • Galvanized steel plate: Lxwxh 160 x 100 x 6 mm
  • 4 fixing holes Ø 6,5 mm
  • Hub Ø 68 mm
  • 6 tapped holes M4 Ø 60 mm
  • Delivered unwired 230 Vac
  • Indoor use

Max load for standard speed
Load > as speed increases

Wall position and load against the hub: 25 kg max
Wall position and load 10 cm from the hub: 15 kg max

Drive torque (unbalance) max:
1 kg at 27 cm (ex. 6.7 kg at 4 cm)

Characteristics
Documentations
Charge capacité  :  30 kg
Speed rotation  :  0.8 rpm tr/min
Sens of rotation  :  Two-way
Power supply  :  230 Vac
Lenght  :  130 mm
Width  :  100 mm
Height  :  103 mm
Destination  :  LUDIC
Classe  :  Premium
Personalise

If no product listed, go back to "no filter"

Charge capacité (kg)
Speed rotation (tr/min)
Sens of rotation
Power supply
